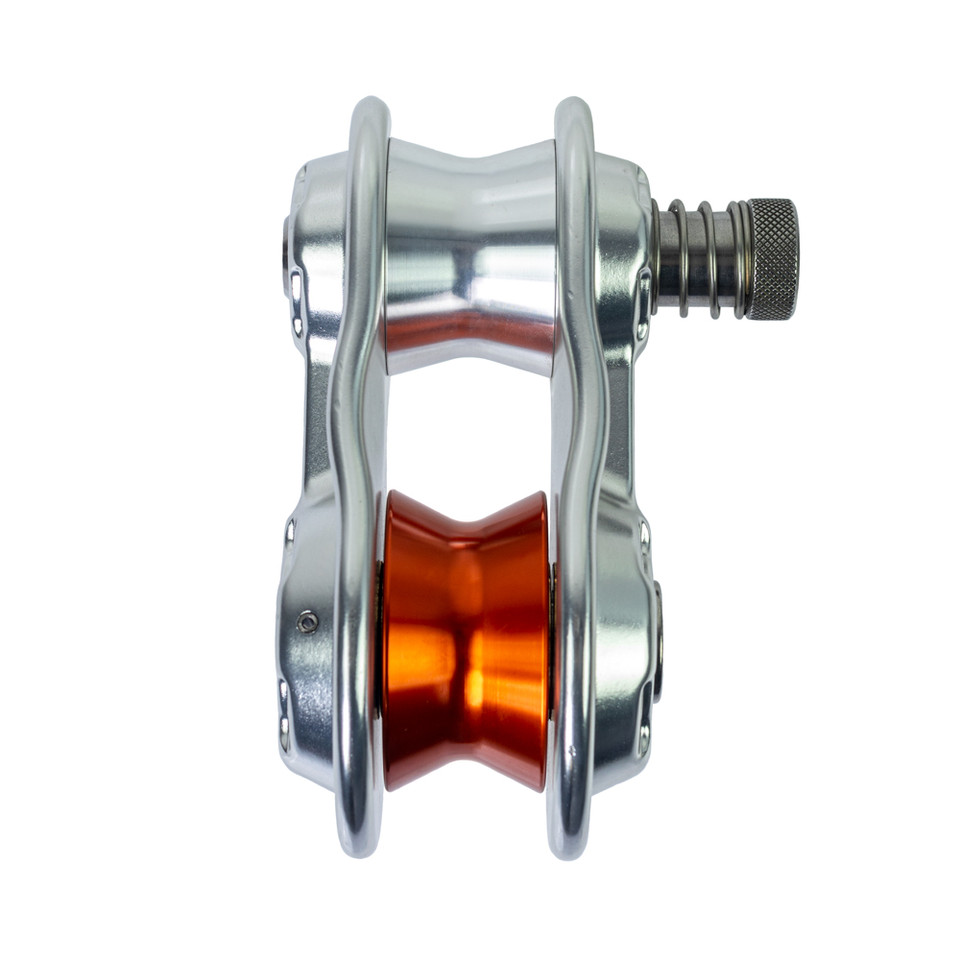

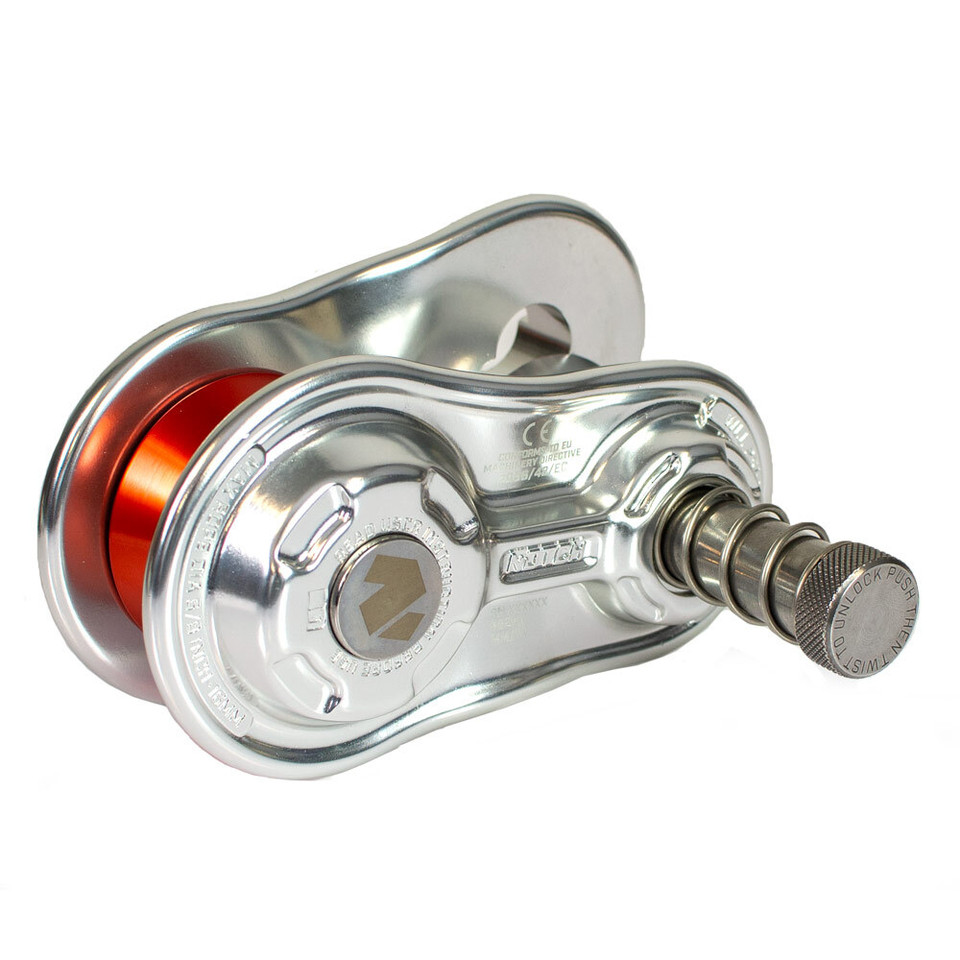

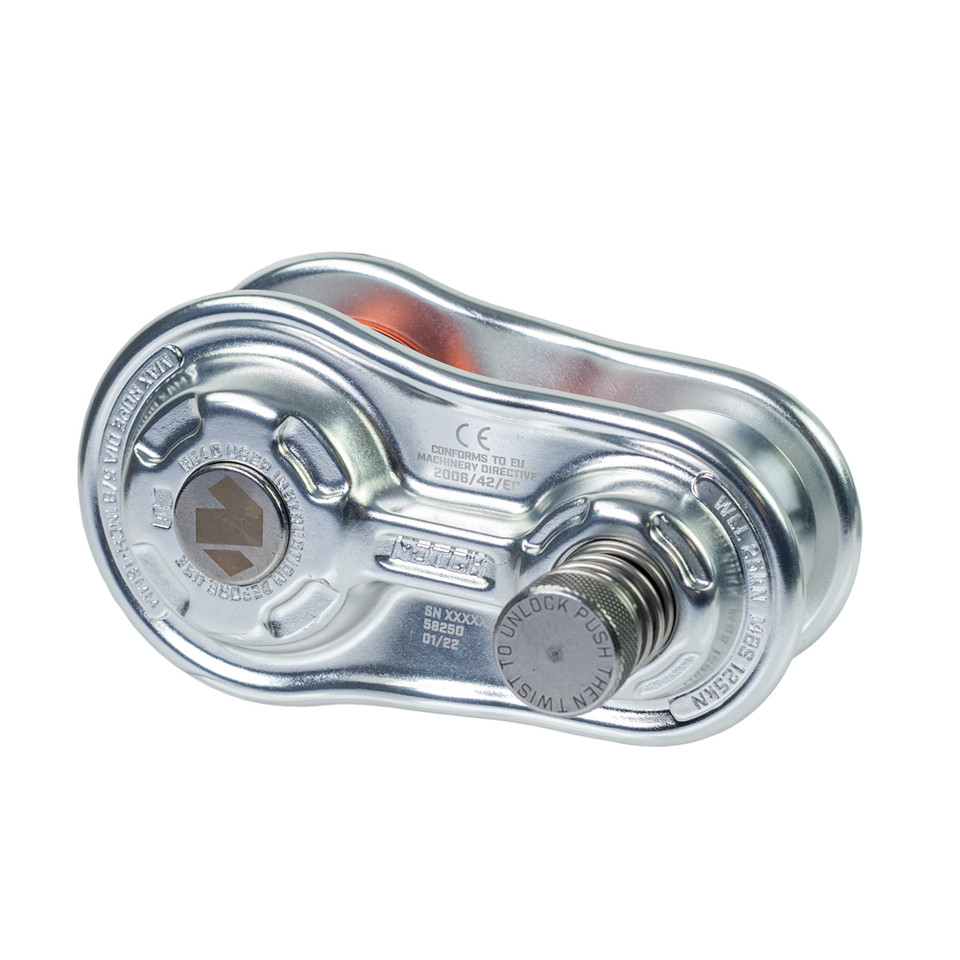

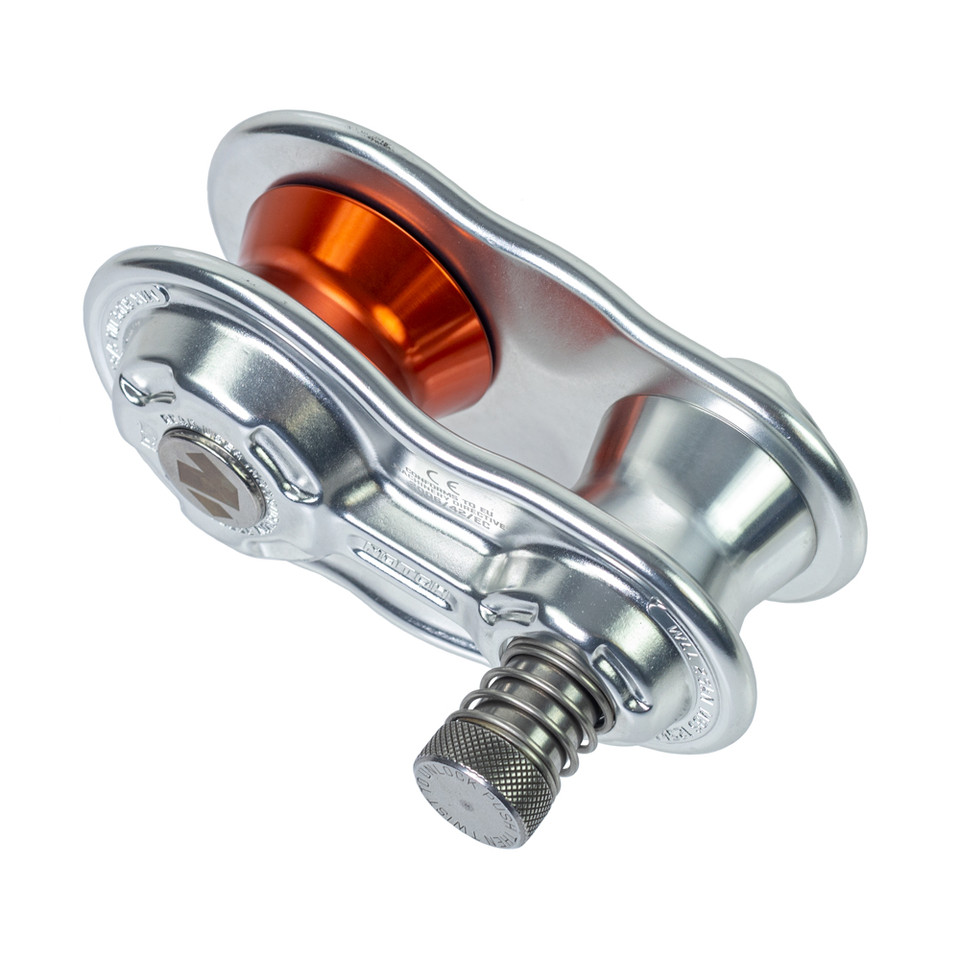

Notch 5/8″ Rigging Block

Description

The Notch 5/8” Rigging Block is a medium sized lightweight arborist block accepts working lines up to 5/8” (16mm) diameter.

Features & Benefits:

• 25 kN WLL / 125 kN MBS
• Hot forged aluminum side plates with rope friendly rounded cheeks
• Precision CNC machined aluminum sheaves with wide bend radii
• Low profile, secure, easy to-open captive screw pin lock High wall, full diameter, improved anchor sling protection
• Wide, concave upper sheave accepts 1” anchor slings
• Flared sideplates reduce twisting in complex rigging scenarios
• WORKING LOAD LIMIT:  (WLL) 25 kN (5,620 lbs.)
• MBS:  125kN (28,100 lbs.)
• MAX WORKING LINE DIAMETER: 5/8 in (16mm)
• MAX SLING DIAMETER: 1in (25mm)
• UPPER SHEAVE DIAMETER: 1.95 in (50mm)
• LOWER SHEAVE DIAMETER: 2.4 in (61mm)
• HEIGHT: 6.2 in (158mm)
• WIDTH: 3.4 in (87mm)
• WEIGHT: 3.1 lbs. (1.4 kg)
• SIDEPLATE MATERIAL:  Aluminum
• SHEAVE MATERIAL:  Aluminum
• AXLE MATERIAL:  Stainless Steel
