Teufelberger Trex
$1.77 – $2.91
Description
tREX is ideally suited for use as a rigging line, soft eye sling or loopie.
Specifications
Standard: Machinery Directive 2006/42/EC
Cover: polyester
Plait number: 12

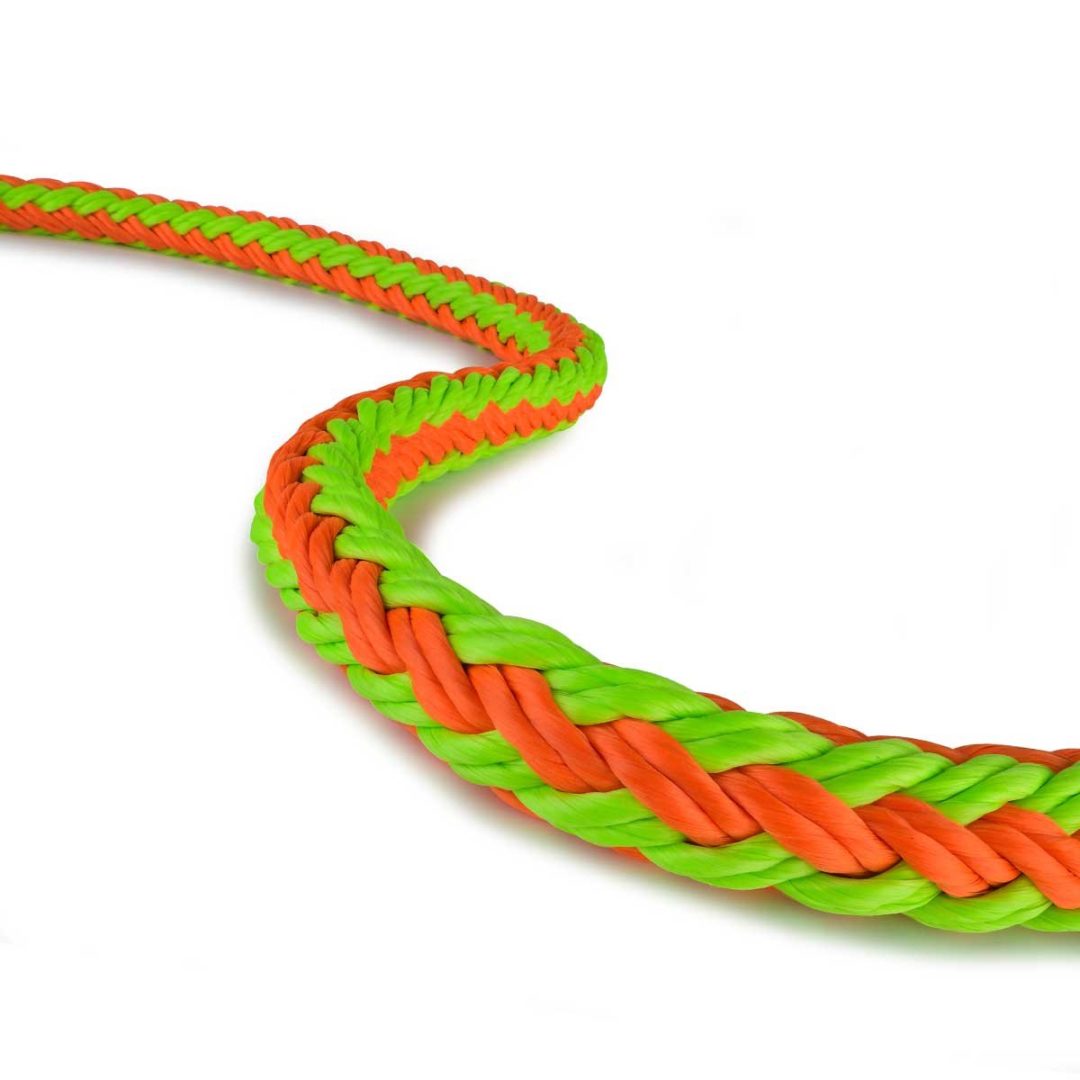

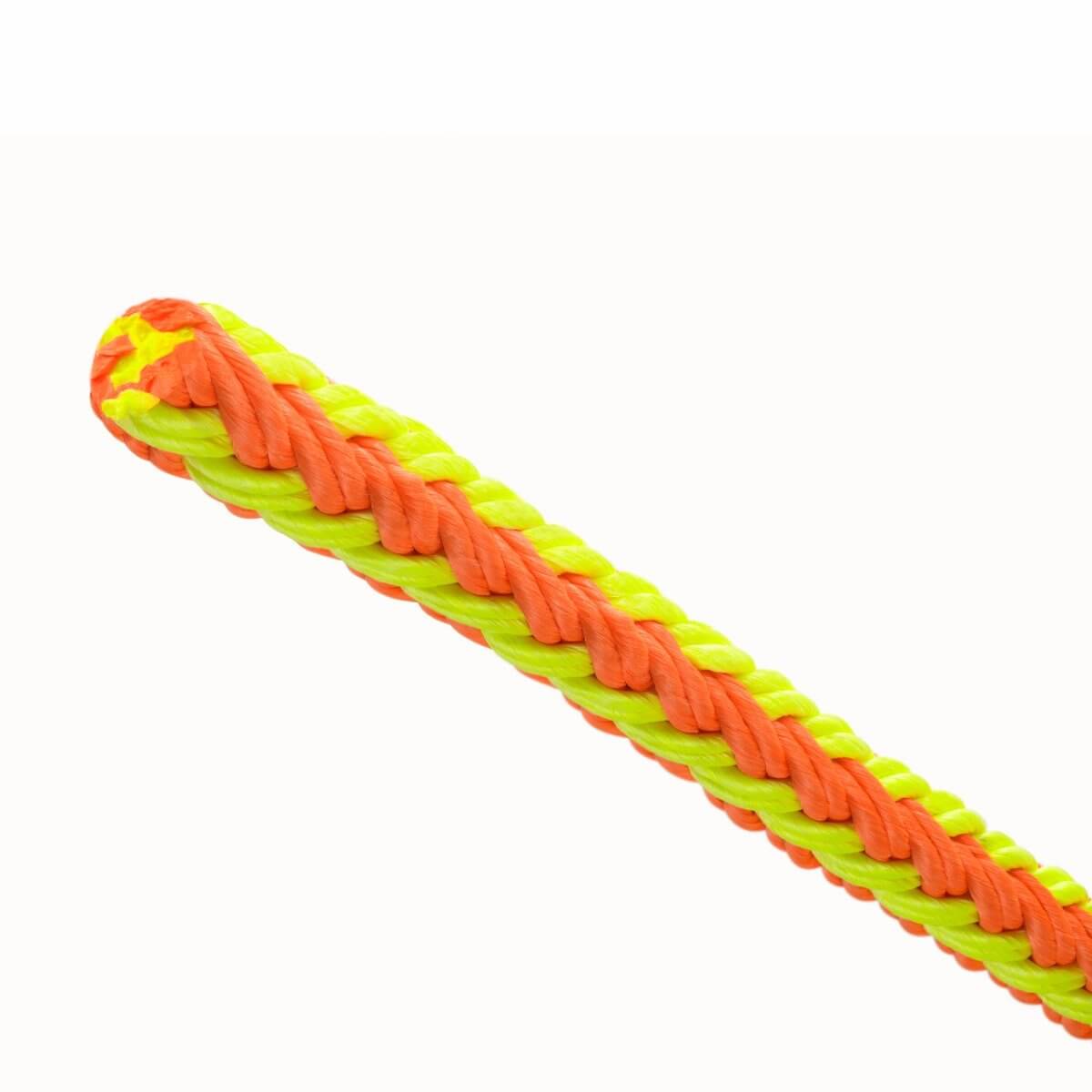

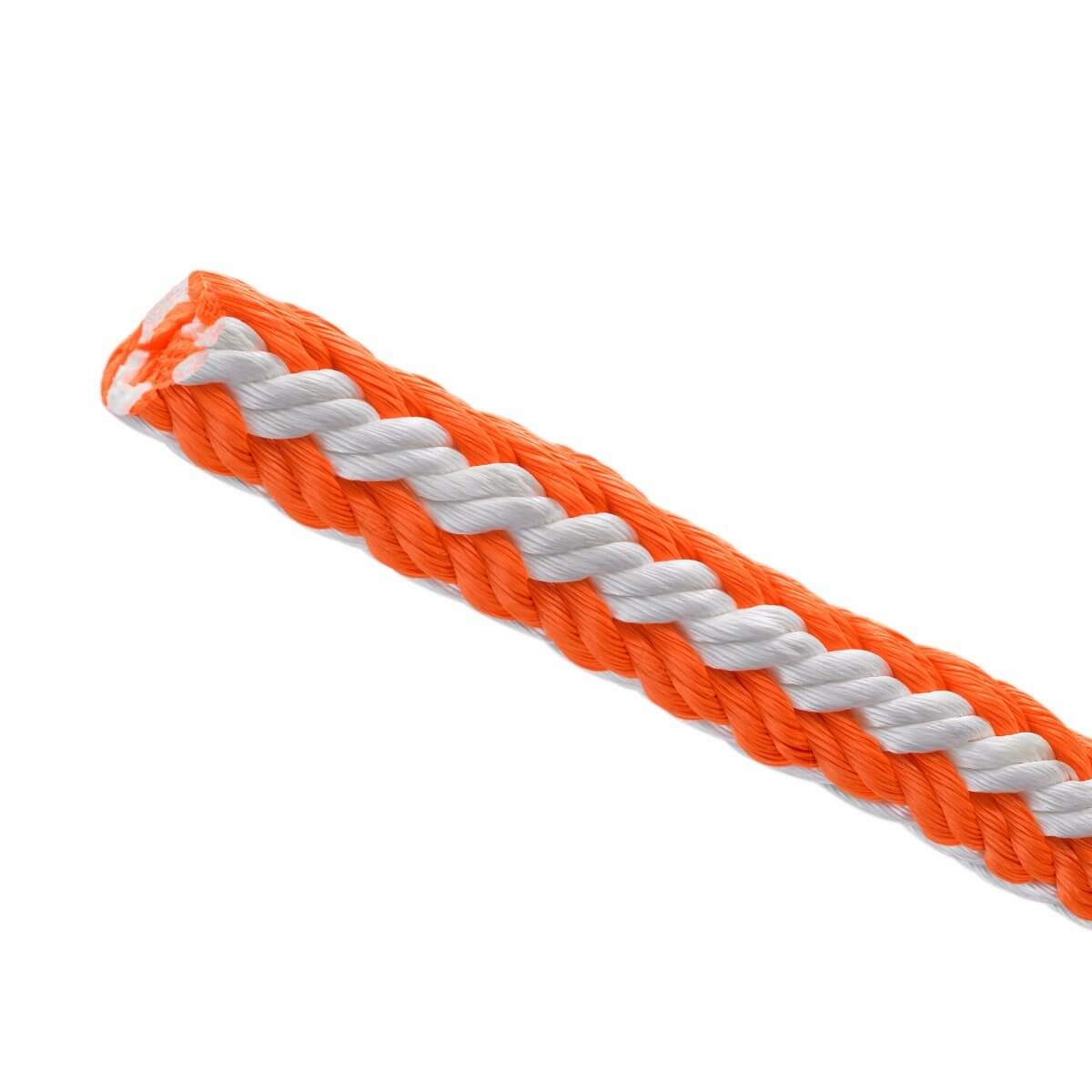

tREX is a low-stretch hollow braid rope consisting of 12 strands. Thus, it is specifically designed for use as a standard rigging line, soft eye sling, or loopie.
This hi-vis rigging line is easy to splice while maintaining a supple feel and excellent abrasion resistance. tREX’s distinguishing features include its color design: each hi-vis strand is solution-dyed to prevent loss of color throughout use. Furthermore, our tREX is wax coated, which keeps it from getting rough fast, prevents the ‘snagging’ typically encountered with such ropes and also increases the rope’s service life significantly. tREX comes in diameters from 9.5 mm to 22.2 mm as well as different colors.
Diameter [mm] |
Diameter [inch] |
Min. breaking strength, free length [daN] |
Min. breaking strength, free length [lbf] |
Min. breaking strength, spliced [daN] |
Min. breaking strength, spliced [lbs] |
Min. breaking strength, with figur 8 knot [daN] |
Min. breaking strength, with figur 8 knot [lbs] |
Weight [g/m] |
Weight [lbf/100] |
---|---|---|---|---|---|---|---|---|---|
9.50 | 3/8 | 2 600 | 5 840 | 2 300 | 5 170 | 1 300 | 2 920 | 69,9 | 4.70 |
11.10 | 7/16 | 3 400 | 7 640 | 3 000 | 6 740 | 1 700 | 3 820 | 98,2 | 6.60 |
12.70 | 1/2 | 4 400 | 9 890 | 3 900 | 8 765 | 2 200 | 4 945 | 129,4 | 8.70 |
15.90 | 5/8 | 6 600 | 14 835 | 5 900 | 13 260 | 3 300 | 7 415 | 203,8 | 13.70 |
19.10 | 3/4 | 9 100 | 20 455 | 8 100 | 18 205 | 4 500 | 10 115 | 267,8 | 18 |
22.20 | 7/8 | 12 800 | 28 770 | 11 500 | 25 850 | 6 400 | 14 385 | 347,7 | 23.30 |
Additional information
Brand | |
---|---|
Diameter | 12.7mm, 16mm, 19.10mm |
Length | Per Foot |
